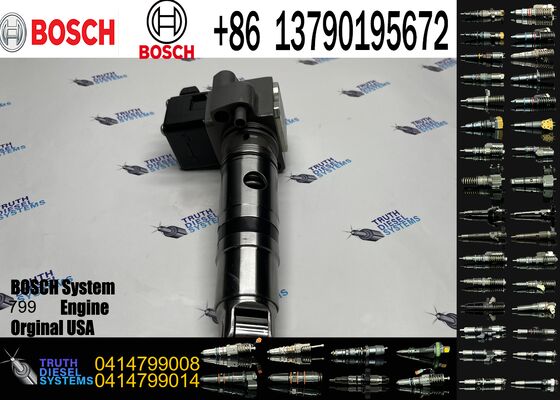

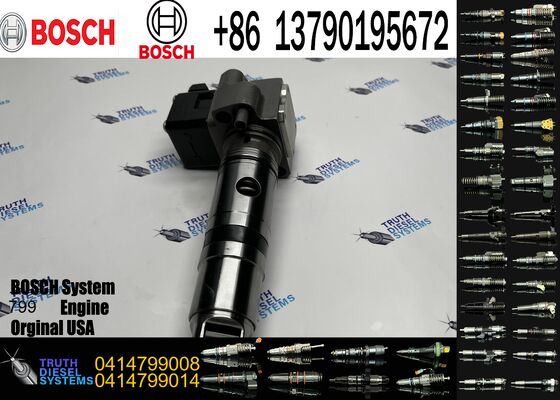

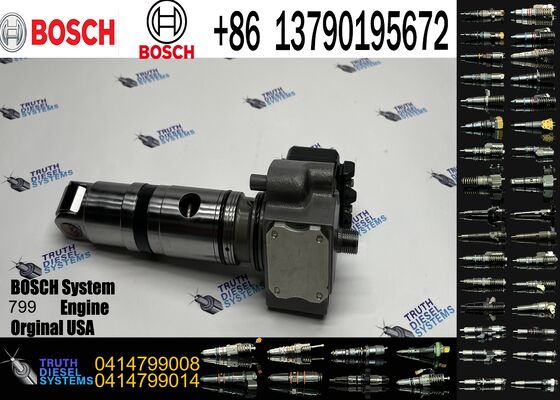

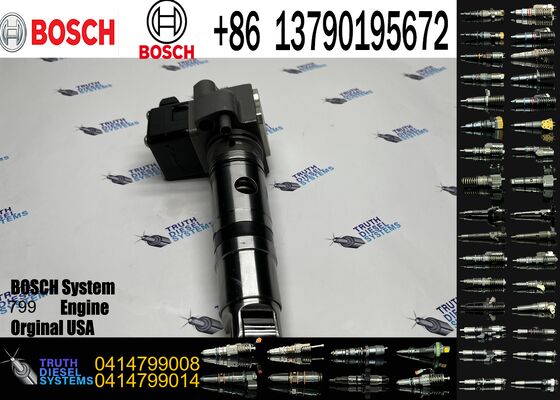

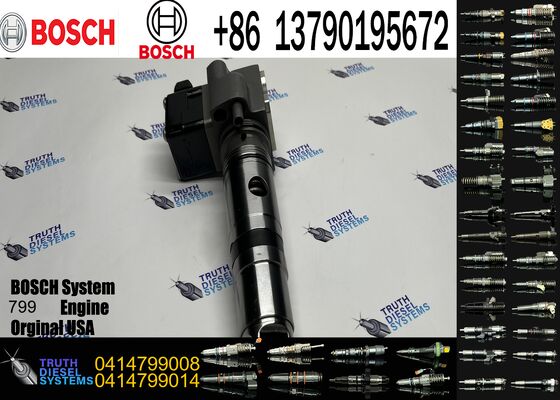

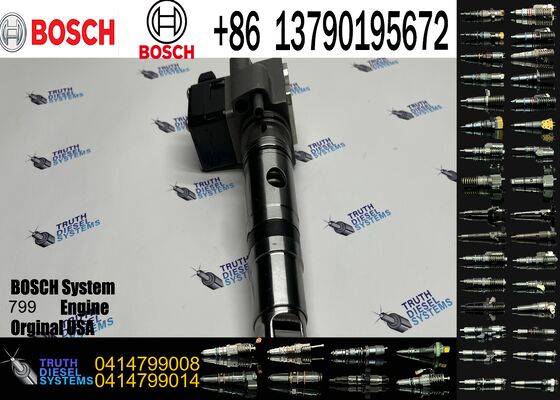

Electronic Unit Pump 0414755008 0 414 755 008 0 414 799 008 0414799008 Suitable for DAF Injection Pump
Product Description:
| OE NO |
0414799008
|
| OE NO1 |
0414755008
|
| Material |
Original new BOSCH INJECTOR |
|
ENGINE
|
GUMMINS
|
|
Car Model
|
GUMMINS
|
b-osCH 799 Series Fuel Injector (Model: 0414799008) Product Description
The b-osCH 799 Series Fuel Injector, Model 0414799008, is a high-performance OE-grade unit injector specifically engineered for heavy-duty diesel engines, tailored to meet the rigorous demands of commercial vehicles, industrial machinery, and construction equipment that require consistent reliability, high efficiency, and low emissions. Adhering to b-osCH’s strict global manufacturing standards and ISO 9001:2015 certific-ation, this injector is crafted with advanced precision CNC machining technology and 100% authentic b-osCH components, featuring a reinforced high-pressure fuel delivery system, a high-sensitivity electromagnetic control valve, and wear-resistant alloy materials. It undergoes rigorous multi-stage quality inspections, including 2800bar high-pressure sealing tests, atomization uniformity tests, thermal shock tests, and long-term durability assessments, ensuring stable and reliable operation in extreme working environments such as high temperature, high pressure, dust, and continuous heavy-load conditions. As a key flagship model in the 799 Series, it is equipped with a precision-drilled injection nozzle, a nano-scale anti-corrosion coating, and an optimized fuel atomization angle, making it widely compatible with Mercedes-Benz diesel engines (OM 904, OM 906, OM 926), heavy-duty commercial trucks, large diesel generators, and construction machinery. Its core advantages include superior high-pressure resistance (up to 2800bar), ultra-low fuel leakage, uniform spray distribution, and strong environmental adaptability. Adopting b-osCH’s exclusive vacuum heat treatment and precision grinding technology, it significantly enhances engine combustion efficiency, reduces fuel consumption by 16-18%, lowers harmful emissions (meeting Euro VI and EPA Tier 4 Final standards), and ensures stable power output even under fluctuating load conditions. Fully compatible with b-osCH PLD2B120 fuel system, it serves as a direct OE replacement with excellent interchangeability, perfectly fitting Mercedes-Benz Actros MP2/MP3, Axor, and Accelo models. Its integrated sealing structure and high-strength material composition effectively extend service life and reduce maintenance frequency and costs, making it the preferred choice for high-demand industrial, commercial, and construction applic-ations. Manufactured in Germany, this injector undergoes strict quality control throughout the entire production process, from raw material selection to final assembly, ensuring consistent performance and reliability, which fully reflects b-osCH’s leading technological strength in the global fuel injection industry[2][3].
1. Core Technical Parameters
| Universal No. |
Product Name |
OEM Cross-Reference Numbers |
Parameter Name |
Specific-ation |
Core Features |
| 0414799008 |
b-osCH 799 Series Fuel Injector |
0414799008, 0414799002, 0414799003, 0414799004, 0414799006, 0986445003, 0986445103, A0280746902 |
Model & Adaptability |
b-osCH 799 Series Unit Injector, OE-grade replacement, applicable to 7.0-12.0L heavy-duty diesel engines (especially Mercedes-Benz OM 904/OM 906/OM 926), 24V voltage, high-impedance design (coil resistance 330mΩ), product weight 2.5kg (5.51 lbs), overall size 26.2×13.0×13.0cm (10.31×5.12×5.12 in), compatible with b-osCH PLD2B120 fuel system, maximum working rail pressure 2800bar, limit valve opening pressure up to 380bar. |
OE-standard manufacturing, direct bolt-on replacement, robust structure, perfect compatibility with b-osCH 799 series fuel systems and Mercedes-Benz diesel engines. |
| 0414799008 |
b-osCH 799 Series Fuel Injector |
0414799008, 0414799002, 0414799003, 0414799004, 0414799006, 0986445003, 0986445103, A0280746902 |
Injection Performance |
Static flow rate 500g/min (3bar, n-heptane), injection pressure 2500-2800bar, leakage ≤0.000014ml/min (30MPa), droplet size 17-84μm, injection time 0.13-0.70ms, supports up to 8 injections, optimized spray pattern for complete combustion and minimal emissions, ensuring fast engine response to throttle movement. |
Precise fuel metering, efficient atomization, fast response speed, stable spray pattern, effectively reducing engine noise and harmful emissions. |
2. Compatible Equipment
| Universal No. |
Product Name |
OEM Cross-Reference Numbers |
Equipment c-ategory |
Compatible Models |
Adaptation Advantages |
| 0414799008 |
b-osCH 799 Series Fuel Injector |
0414799008, 0414799002, 0414799003, 0414799004, 0414799006, 0986445003, 0986445103, A0280746902 |
Heavy-Duty Commercial Vehicles |
Mercedes-Benz Actros MP2/MP3, Axor, Accelo 4.2 (engine code OM 904), 2009-2014 heavy-duty cargo trucks and tractors equipped with Mercedes-Benz diesel engines, suitable for long-haul, heavy-load and urban logistics transportation needs[3]. |
Stable power output, low fuel consumption, strong adaptability to complex road conditions, seamless matching with Mercedes-Benz diesel engine performance. |
| 0414799008 |
b-osCH 799 Series Fuel Injector |
0414799008, 0414799002, 0414799003, 0414799004, 0414799006, 0986445003, 0986445103, A0280746902 |
Industrial & Construction Equipment |
Large diesel generators (550-1400KW), heavy excavators, wheel loaders, bulldozers equipped with Mercedes-Benz OM 904/OM 906/OM 926 diesel engines, industrial diesel power units for mining, construction and engineering projects. |
Strong anti-pollution and anti-corrosion performance, durable in harsh working environments, reliable under continuous high-load operation, easy to maintain and disassemble. |
