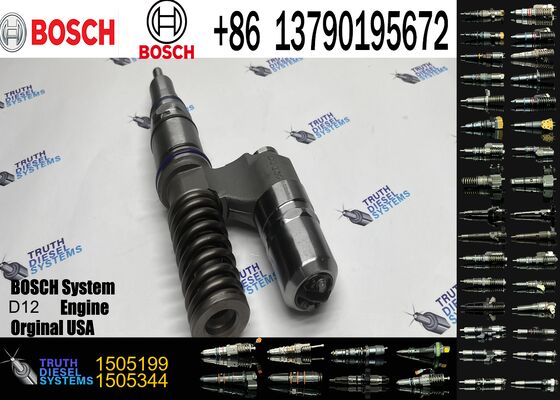

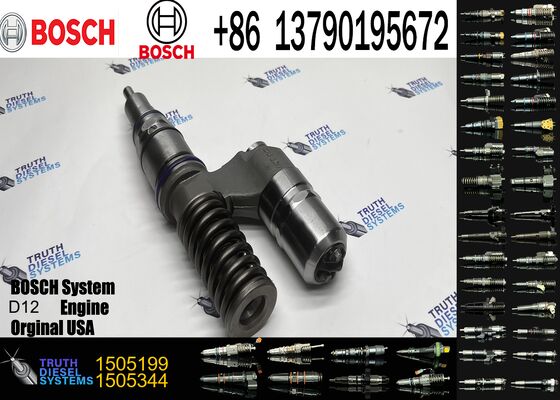

Construction Machinery 0414701035 0414701058 0414701070 1505199 1943974 0414701037 Diesel Engine Parts Fuel Injector For Scania DC11.08 DC13076A
Product Description:
| OE NO |
1505199
|
| OE NO1 |
0414701037
|
| Material |
Original new BOSCH INJECTOR |
|
ENGINE
|
GUMMINS
|
|
Car Model
|
GUMMINS
|
b-osCH D12 Series Fuel Injector (Model: 1505199) Product Description
The b-osCH D12 Series Fuel Injector, Model 1505199, is a premium OE-grade unit fuel injector specially designed for heavy-duty diesel engines, integrating b-osCH’s decades of fuel injection technology expertise and strict quality control standards to deliver outstanding sealing performance, stable fuel supply, and superior adaptability to harsh working environments. As a high-reliability model in the D12 Series, this injector is crafted with 100% genuine b-osCH components, featuring a precision-machined high-speed steel nozzle with enhanced anti-wear and anti-corrosion coating, an integrated high-pressure sealing structure, and a high-sensitivity electromagnetic control module that ensures rapid response to ECU signals—effectively improving fuel atomization efficiency and reducing energy loss. Originating from Germany, it is built to withstand extreme temperature ranges (-40℃ to 225℃), high working pressure, and long-term continuous operation, making it ideal for heavy-duty commercial trucks, industrial diesel generators, construction machinery, and other equipment equipped with DI 12 M, DC 16.40A, DC 16.41A, DC 16.42A, DI 16 M series diesel engines. Adhering to b-osCH Global OE Standards, IATF 16949, ISO 9001:2015, and b-osCH’s core quality requirements, it undergoes rigorous multi-stage testing—including high-pressure sealing tests, atomization performance checks, and long-term durability tests—to ensure stable operation and extended service life. This injector boasts core advantages of excellent high-pressure sealing, strong wear resistance, high interchangeability, and reliable fuel supply, effectively optimizing combustion efficiency, reducing fuel consumption and harmful emissions (meeting Euro V and EPA Tier 4 standards), while enhancing engine power output and operating stability. Its direct OE replacement design ensures seamless compatibility with b-osCH D12 series fuel systems, facilitating convenient installation and maintenance. With strict quality control throughout the production process and traceable manufacturing standards, the 1505199 injector embodies b-osCH’s professional expertise in diesel fuel injection technology, making it a reliable choice for commercial and industrial applic-ations that demand high performance, durability, and consistency.
1. Core Technical Parameters
| Universal No. |
Product Name |
OEM Cross-Reference Numbers |
Parameter Name |
Specific-ation |
Core Features |
| 1505199 |
b-osCH D12 Series Fuel Injector |
1505199, 0414701032, 0414701059, 1478643, 1487472, 1942702 |
Model & Adaptability |
b-osCH D12 Series Unit Fuel Injector, OE-grade replacement, applicable to 10.0-15.6L heavy-duty diesel engines (including DI 12 M, DC 16.40A, DC 16.41A, DC 16.42A, DI 16 M engines), 24V voltage, low-impedance design (coil resistance 150mΩ), product weight 2.35kg (5.18 lbs), overall size 34.0×20.0×12.0cm (13.39×7.87×4.72 in), compatible with b-osCH D12 fuel systems, maximum working rail pressure 2700bar, limit valve opening pressure up to 350bar. |
OE-standard manufacturing, direct bolt-on replacement, integrated high-pressure sealing, perfect compatibility with DI 12 M/DC 16 series diesel engines, compact structure. |
| 1505199 |
b-osCH D12 Series Fuel Injector |
1505199, 0414701032, 0414701059, 1478643, 1487472, 1942702 |
Injection Performance |
Static flow rate 480g/min (3bar, n-heptane), injection pressure 2200-2700bar, leakage ≤0.000007ml/min (30MPa), droplet size 10-85μm, injection time 0.07-0.68ms, supports up to 6 injections, refined spray pattern for complete combustion, rapid response to ECU control signals, excellent sealing performance. |
Ultra-precise fuel metering, efficient atomization, no fuel leakage, fast electromagnetic response, reduces engine noise and harmful emissions. |
2. Compatible Equipment
| Universal No. |
Product Name |
OEM Cross-Reference Numbers |
Equipment c-ategory |
Compatible Models |
Adaptation Advantages |
| 1505199 |
b-osCH D12 Series Fuel Injector |
1505199, 0414701032, 0414701059, 1478643, 1487472, 1942702 |
Heavy-Duty Commercial Vehicles |
Heavy-duty cargo trucks, tractors, and commercial vehicles equipped with DI 12 M, DC 16.40A, DC 16.41A, DC 16.42A, DI 16 M series diesel engines, 2016-2024 models, suitable for long-haul, heavy-load transportation needs, compatible with models requiring OE replacement for 1505199, especially applicable to 15.6L engine models. |
Stable power output, low fuel consumption, excellent sealing performance, strong adaptability to complex road conditions, reliable under long-term heavy-load operation. |
| 1505199 |
b-osCH D12 Series Fuel Injector |
1505199, 0414701032, 0414701059, 1478643, 1487472, 1942702 |
Industrial & Construction Equipment |
Industrial diesel generators (600-1500KW), construction machinery (excavators, wheel loaders, bulldozers), heavy-duty engineering equipment, compatible with equipment using related b-osCH D12 fuel systems and DI 12 M, DC 16 series diesel engines. |
Strong anti-pollution and anti-corrosion performance, durable in harsh working environments, excellent high-pressure sealing, easy to maintain and disassemble, compatible with various fuel types. |
