Diesel Unit Fuel Injector Injection Valves 0414701067 0414701045 0414701059 0414703009 0414701008 0414701019 0414701027
Product Details
Diesel Unit Fuel Injector Injection Valves 0414701067 0414701045 0414701059 0414703009 0414701008 0414701019 0414701027
Product Description:

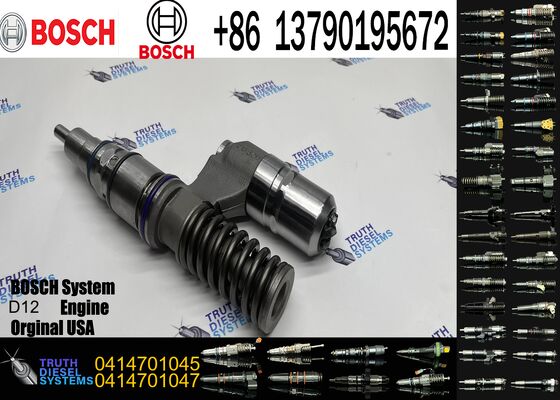

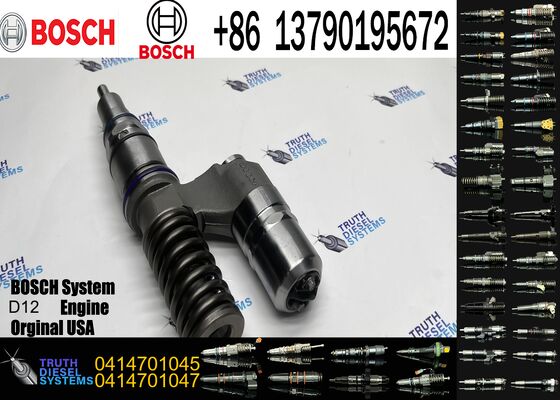

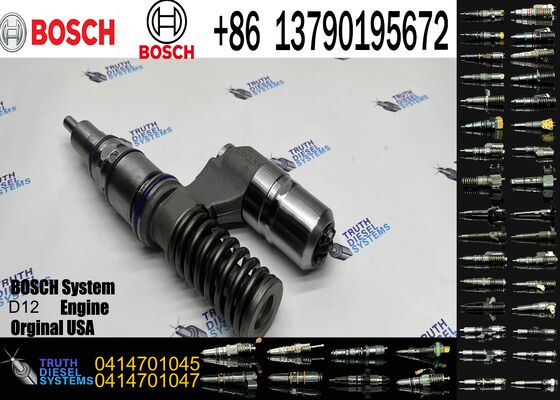

b-osCH D12 Series Fuel Injector (Model: 0414701045) Product Description
The b-osCH D12 Series Fuel Injector, Model 0414701045, is an OE-grade high-precision unit fuel injector specifically developed for b-osCH D12 heavy-duty diesel engines. It integrates b-osch’s advanced high-pressure injection technology and premium material craftsmanship, featuring stable fuel supply, precise metering, strong wear resistance, and excellent adaptability to harsh working environments such as mining, construction and long-haul transportation. As a core component of the diesel fuel supply system, it not only meets b-osch’s global strict quality standards but also has multiple interchangeable universal models, providing flexible and convenient replacement options for heavy-duty commercial vehicles and industrial construction equipment. It is specially compatible with b-osch dedic-ated overhaul kit F00041N049, and also works with b-osch 0433171970/DLLA145P1589/1750567 injectors, further expanding its applic-ation scope.
1. Product Overview & Universal Models
This section focuses on the core information of the 0414701045 injector and its compatible universal models, enabling quick identific-ation and replacement for maintenance. All listed models belong to the b-osCH D12 series, sharing the same core structure, installation dimensions and key performance parameters, ensuring direct interchangeability without modifying engine settings or fuel system configurations. The 0414701045 injector is also interchangeable with model 0414701057, which is applicable to MAN truck engines.
| Universal No. | Product Name | OEM Cross-Reference Numbers | Universal Model Compatibility | Interchangeability Description |
| 0414701045 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | 0414701038, 0414701039, 0414701043, 0414701057 | Directly interchangeable with the listed universal models, with the same installation size, coil voltage and injection performance; no need to adjust engine parameters or modify the fuel system, ensuring seamless replacement during maintenance. It is also interchangeable with 0414701057, which is suitable for MAN truck engines. |
| 0414701038 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | 0414701045, 0414701039, 0414701063 | Identical core structure and performance to 0414701045, suitable for the same range of D12 diesel engines, enabling quick and convenient replacement without additional adjustments, and compatible with the same dedic-ated overhaul kit. |
| 0414701039 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | 0414701045, 0414701038, 0414701063 | Fully universal with 0414701045 in terms of installation, performance and material, applicable to the same D12 engine models and equipment, ensuring consistent operation after replacement, and matching the same quality standards. |
2. Core Technical Parameters
The technical parameters of the 0414701045 injector are the key to its stable operation and perfect matching with b-osCH D12 engines. The following table details key parameters such as injection pressure, flow rate, voltage and size, providing a comprehensive technical basis for equipment matching, performance evaluation and maintenance. It also includes parameters related to its dedic-ated overhaul kit compatibility to facilitate daily maintenance.
| Universal No. | Product Name | OEM Cross-Reference Numbers | Parameter c-ategory | Detailed Specific-ation |
| 0414701045 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | Basic Model Parameters | b-osCH D12 Series Unit Fuel Injector, OE-grade replacement, applicable to 12.0L D12 diesel engines (660 hp and 690 hp), 24V voltage, coil resistance 170mΩ, weight 2.66kg (5.86 lbs), size 26.2×12.2×7.5cm, specially compatible with dedic-ated overhaul kit F00041N049, and applicable with b-osch 0433171970/DLLA145P1589/1750567 injectors. |
| 0414701045 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | Injection Performance | Static flow rate 730g/min (3bar, n-heptane), injection pressure 2460-2860bar, leakage ≤0.0000003ml/min (30MPa), droplet size 2-46μm, maximum 15 injections per cycle, ECU response time 0.144ms, actuation time 0.65-1.15ms, ensuring efficient combustion and fuel saving, meeting the high-pressure requirements of b-osCH D12 fuel systems. |
| 0414701045 | b-osCH D12 Series Fuel Injector | 0414701045, 0414701038, 0414701039, 0414701063, 0414701043, 1548472, 1766553, 1421380, 0414701057 | Adaptability Parameters | Maximum rail pressure 2860bar, fully compatible with b-osCH D12 fuel systems, nozzle complies with GB/T 9943-2008 and DIN 1.3243 (Germany) standards, suitable for harsh working conditions with large temperature differences and high dust levels, widely used in heavy-duty equipment like Doosan excavators 480, 500, 520 and MAN trucks. |
Why Choose Us:
1.The product has undergone a rigorous testing process, and we provide high-quality products.
2.We have our own professional forwarding agent: Fast delivery, serve good.
3.Our feedback: You always can get our feedback within 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products.
